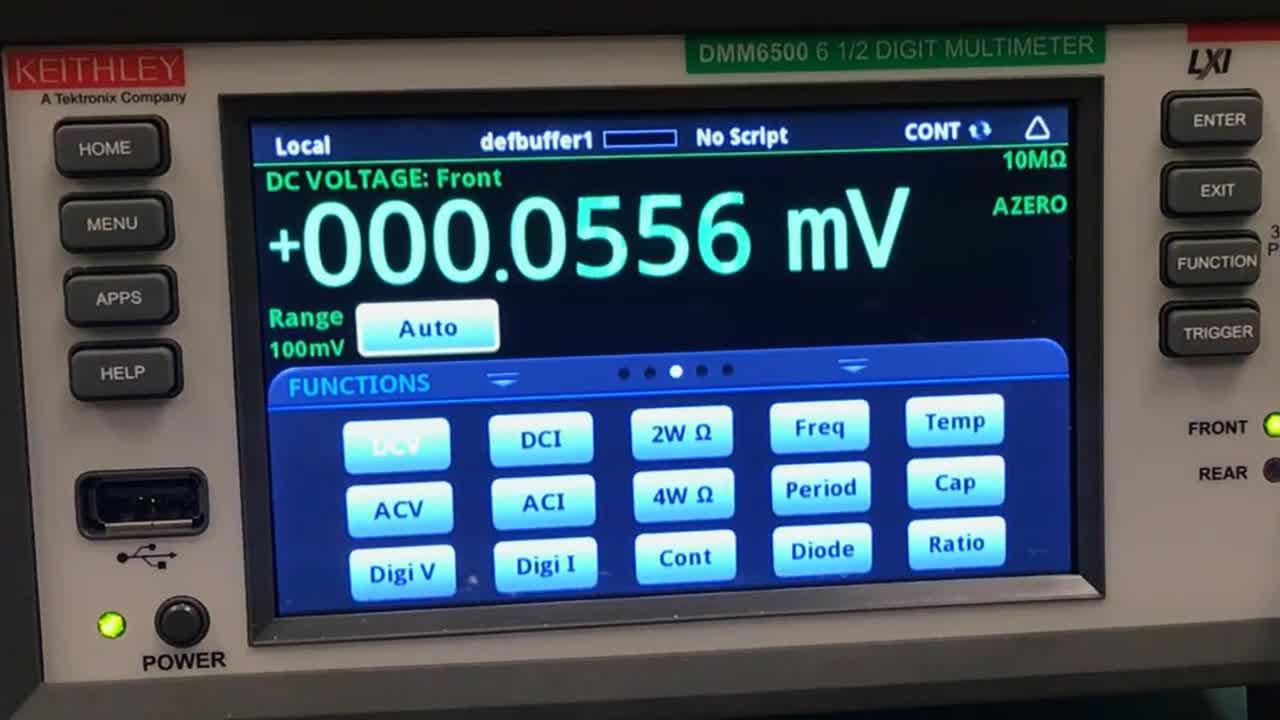

Understand the power profile details of your wireless device designs by performing a digitized current capture with the DMM6500 6.5-digit Graphical Sampling Multimeter. This example places a Bluetooth Low-energy (BLE) tracking device in series with a battery and the current measurement inputs of the DMM6500. The instrument is configured to digitize the current (via level trigger) so that you can visualize the transmission and "beep" load currents drawn from the battery source. The waveform is visualized via the graph and cursors are used to focus on specific signal events, aiding to determine average current for different device behavior segments.
時長(cháng) 3m 26s
